Many boat, horse, utility, and specialty trailers use a single straight frame member instead of the two angled rails found on a traditional A-frame trailer. That design creates a problem when you want to install a weight distribution hitch: there may be no side frame rails where the standard sway-control brackets can be mounted.

A pole tongue adapter solves that fitment problem. It clamps around the trailer’s central tongue and creates a crossmember where the Equal-i-zer® hitch brackets can be installed.

The adapter does not increase trailer capacity or make every straight-tongue trailer compatible with weight distribution. Before ordering, you need to confirm the trailer’s frame dimensions, shape, available mounting space, hitch model, tongue weight, brake system, and surrounding components.

The Equal-i-zer Pole Tongue Adapter Kit is designed for compatible straight-tongue trailers using 6K, 10K, 12K, or 14K Equal-i-zer hitch models. Once installed, it allows the hitch to provide both weight distribution and integrated 4-Point Sway Control®.

What Is a Pole Tongue Trailer?

A pole tongue trailer uses one primary frame member extending forward from the trailer body to the coupler. This design is also commonly called a straight tongue, single tongue, or drawbar-style tongue.

Pole tongue construction is frequently found on:

• Boat trailers
• Horse and livestock trailers
• Utility trailers
• Icehouse trailers
• Bull-nose trailers
• Specialty equipment trailers

By comparison, an A-frame trailer has two frame rails that angle inward toward the coupler. Those rails usually provide mounting surfaces for conventional weight distribution brackets.

Why Standard Weight Distribution Brackets May Not Fit

The Equal-i-zer hitch normally uses two rigid L-brackets mounted on opposite frame rails. The spring arms rest on those brackets to distribute tongue weight and create two of the hitch’s four integrated sway-control points.

A single-beam trailer tongue may not provide separate driver- and passenger-side rails for those brackets.

Fitment can also be affected by:

• Surge-brake actuator: The sliding actuator assembly may occupy space near the coupler.
• Side-mounted tongue jack: A jack may interfere with the adapter crossmember or bracket position.
• Boat winch post: Winch stands and bow stops often occupy the same general area needed for hitch equipment.
• Spare-tire mounts: A tire or carrier can block access to the tongue.
• Brake lines and wiring: Lines routed along the tongue must not be crushed or damaged.
• Non-rectangular frame shape: Round, channel, tapered, or irregular frames may not provide the required clamping surfaces.
• Insufficient clear length: The correct mounting area may be occupied by other equipment.

The trailer should be measured before the hitch or adapter is ordered. Do not assume that every boat trailer with a single tongue uses the same dimensions.

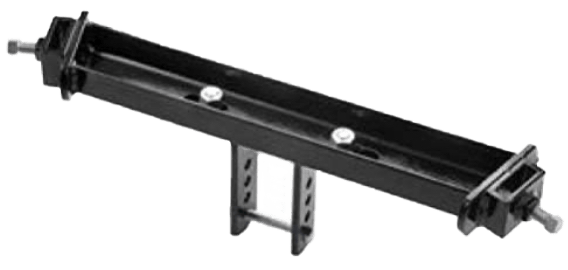

What the Equal-i-zer Pole Tongue Adapter Does

The Pole Tongue Adapter Kit clamps around the central trailer tongue and adds a steel crossmember across the trailer’s width.

The Equal-i-zer sway-control brackets can then be installed on the ends of that crossmember, creating a mounting configuration similar to the two side rails of an A-frame trailer.

This allows the spring arms to:

• Distribute trailer tongue weight: Spring-arm leverage restores part of the load toward the tow vehicle’s front axle and trailer axles.
• Create rigid bracket contact: The spring arms rest on fixed L-brackets instead of hanging from chains.
• Provide integrated sway resistance: Friction at the hitch head and trailer brackets helps resist side-to-side trailer movement.
• Make straight-tongue trailers compatible: The adapter supplies the bracket locations that the original trailer frame lacks.

The adapter is a fitment component. It does not change the trailer’s GVWR, axle capacity, tire rating, tongue-weight rating, coupler rating, or the tow vehicle’s capacity.

Equal-i-zer Pole Tongue Adapter Compatibility

Use the following specifications as an initial fit check. Always compare your measurements with the current product and installation instructions before ordering.

Review the complete Pole Tongue Adapter Installation Guide before confirming compatibility.

How to Measure a Boat Trailer for the Adapter

Measure the trailer while it is parked securely on a level surface. Photographing the tongue and surrounding components can also help when consulting a dealer or Equal-i-zer support.

1. Identify the Coupler Ball Cavity

The installation measurement begins at the center of the coupler ball cavity—the point where the hitch ball sits when the trailer is connected.

Do not begin the measurement at the front edge of the coupler, surge actuator housing, or safety-chain attachment.

2. Measure Back 27–32 Inches

Mark the section of trailer tongue located between 27 and 32 inches behind the coupler ball cavity.

The adapter crossmember needs to be installed within this range so the Equal-i-zer spring arms and brackets can operate correctly.

3. Measure the Tongue Height

Measure the vertical exterior dimension of the rectangular tongue. The standard adapter supports compatible frames between 2 and 5 inches high.

4. Measure the Tongue Width

Measure the exterior width from one side of the tongue to the other. The compatible range is 1 to 5 inches.

5. Confirm the Frame Shape

The frame should have flat, parallel sides that are perpendicular to the ground. A round tube, open channel, sharply tapered section, or irregular extrusion may not provide the clamping surface required by the standard kit.

6. Check Both Sides for Clearance

Confirm there is approximately 3 inches of clear space along both sides of the tongue where the adapter will be installed.

Look for interference from:

• Brake lines
• Electrical wiring
• Safety-chain mounts
• Tongue jacks
• Winch posts
• Spare-tire brackets
• Toolboxes
• Jack handles and pivot points

7. Check Turning and Articulation Clearance

The installed adapter, brackets, and spring arms must not contact the trailer, tow vehicle, surge-brake actuator, or surrounding hardware during normal turns, backing, and suspension movement.

Can You Use a Weight Distribution Hitch With Boat-Trailer Surge Brakes?

The Equal-i-zer hitch is compatible with most surge-brake systems because its rigid brackets allow the spring arms to slide forward and backward as the trailer actuator compresses and releases.

Surge brakes operate mechanically. When the tow vehicle slows, the trailer pushes forward against the coupler actuator. That movement applies hydraulic pressure to the trailer brakes.

A compatible weight distribution setup must allow the actuator to move as designed.

Before installation, confirm:

• The trailer manufacturer permits weight distribution
• The surge-brake manufacturer permits the proposed hitch system
• The actuator can move through its full operating range
• Brake lines are not pinched by the adapter hardware
• The spring arms do not bind during braking, turns, or backing
• The coupler and actuator are rated for the loaded trailer

For a broader comparison of trailer-braking systems, read The Pros and Cons of Electric vs. Trailer Surge Brakes.

Which Equal-i-zer Hitch Models Work With the Adapter?

The standard Pole Tongue Adapter Kit is intended for the Equal-i-zer 6K, 10K, 12K, and 14K hitch models.

Choosing among those models depends on the complete loaded setup, including:

• Gross trailer weight: The complete trailer after the boat, fuel, batteries, equipment, coolers, gear, and other cargo are loaded.
• Loaded tongue weight: The actual downward force at the coupler.
• Rear cargo: Equipment carried behind the tow vehicle’s rear axle.
• Receiver rating: Both its weight-carrying and weight-distribution limits.
• Tow-vehicle capacity: Payload, axle, tire, GVWR, GCWR, and trailer limits.

Do not size the hitch using only the boat’s listed weight or the trailer’s empty weight. Fuel, batteries, anchors, safety equipment, coolers, fishing gear, water, and other equipment can materially change both total trailer weight and tongue weight.

Use the Equal-i-zer Hitch Size Calculator as a starting point, then confirm the result with the current hitch and vehicle instructions.

For more detail about trailer balance, review Why Is Tongue Weight So Important?

What About the Equal-i-zer 4K Hitch?

The standard Pole Tongue Adapter Kit is not compatible with the Equal-i-zer 4K hitch.

Some compatible 4K pole tongue trailers may use a separate installation method that positions the standard L-brackets directly on the tongue.

That method has its own frame, clearance, bracket-position, and installation requirements. Do not substitute the standard adapter instructions or assume the methods are interchangeable.

Review the 4K Hitch L-Bracket Installation Guide for Pole Tongue Trailers or contact Equal-i-zer support before proceeding.

Pole Tongue Adapter Installation Overview

The adapter should be installed according to the instructions supplied with the kit. The following overview explains the general process but does not replace the official guide.

1. Confirm trailer and hitch compatibility. Verify the Equal-i-zer model, frame dimensions, frame shape, tongue rating, and clear mounting range.
2. Secure the trailer. Park on a level surface, apply the tow vehicle parking brake, and use appropriate wheel chocks.
3. Mark the correct mounting position. Measure 27–32 inches from the coupler ball cavity and identify a clear section of tongue.
4. Protect brake lines and wiring. Relocate or shield any components that could be trapped by the adapter hardware, following manufacturer instructions.
5. Position the adapter crossmember. Center it on the tongue at the approved mounting point.
6. Install the supplied clamps and hardware. Follow the kit’s orientation, sequence, and torque specifications.
7. Install the Equal-i-zer L-brackets. Mount the brackets on the adapter crossmember according to the adapter and hitch instructions.
8. Set up the weight distribution hitch. Adjust ball height, hitch-head angle, bracket height, and spring-arm tension for the loaded towing combination.
9. Check brake-actuator movement. Confirm the surge system can compress and release without interference.
10. Check turning clearance. Slowly test normal turns and backing while watching the adapter, spring arms, actuator, trailer, and tow vehicle.
11. Reinspect after the first tow. Check hardware torque, bracket position, frame contact, wiring, brake lines, and any signs of movement.

Use the official Pole Tongue Adapter Installation Guide and the correct Equal-i-zer hitch installation instructions during setup.

Common Pole Tongue Adapter Fitment Mistakes

Ordering From Trailer Type Alone

Knowing that you own a boat trailer is not enough. The tongue must also meet the frame-shape, dimension, hitch-model, and clearance requirements.

Measuring From the Wrong Point

The 27–32-inch mounting range is measured from the center of the coupler ball cavity, not from the front of the actuator or coupler housing.

Ignoring the Tongue-Jack or Winch Post

A trailer may have the correct frame dimensions but lack enough usable space because of a side jack, winch stand, bow stop, or spare tire.

Clamping Over Brake Lines or Wiring

Adapter hardware must not crush, pinch, stretch, or abrade hydraulic lines, electrical wires, or safety-system components.

Using the Adapter With a 4K Hitch

The standard adapter is not intended for the Equal-i-zer 4K model. Review the separate 4K pole-tongue installation process.

Choosing a Hitch From Dry Weight

A boat trailer’s road-ready load includes the boat, trailer, fuel, batteries, equipment, coolers, anchors, gear, and other cargo. Size the hitch from loaded measurements.

Skipping the First-Tow Inspection

New hardware and brackets should be inspected after the first tow. Recheck torque and look for movement, interference, frame damage, or contact with brake and electrical components.

Pole Tongue Adapter Pre-Purchase Checklist

Conclusion: Verify the Trailer Before Ordering the Adapter

A pole tongue adapter makes it possible to use an Equal-i-zer weight distribution hitch on many straight-tongue trailers that do not have conventional A-frame rails.

The adapter creates solid mounting points for the hitch’s rigid sway-control brackets, allowing the spring arms to distribute tongue weight and activate the hitch’s integrated sway control.

Compatibility depends on more than the trailer being a boat or pole-tongue design. Measure the frame, confirm the 27–32-inch mounting area, identify every potential obstruction, verify surge-brake operation, and match the hitch to the complete loaded trailer.

Ready to check your setup? Explore the Equal-i-zer Pole Tongue Adapter Kit, review the installation guide, or use the Hitch Size Calculator to identify the Equal-i-zer model matched to your loaded trailer.

Frequently Asked Questions About Pole Tongue Adapters
