What is a Sway Control Hitch

A Sway Control Hitch is a device designed to reduce or eliminate trailer sway, also known as fish-tailing. Trailer sway occurs when the trailer moves side to side behind the tow vehicle, often caused by wind, passing trucks, or uneven loads. For example, the Equal-i-zer Hitch comes with integrated sway control, meaning it is built into the hitch as a standard feature rather than requiring a separate attachment.

When is a Sway Control Hitch Recommended?

Sway control hitches are particularly important for trailers with higher susceptibility to lateral movement. Travel trailers and box trailers benefit the most, especially those over 20 feet or weighing more than 3,000 pounds. Their large sides act like sails in crosswinds, making sway more likely. Boats and enclosed car trailers also gain stability from sway control due to their aerodynamic shapes. While lightweight trailers may not require it, sway control can still improve handling. Fifth-wheel and gooseneck trailers generally do not need sway control because their pivot point is directly over or in front of the tow vehicle’s rear axle, giving them inherent stability.

How Sway Control Hitches Work

Sway control hitches use different mechanisms to manage trailer movement. The first method is friction-based sway control. This type uses calibrated friction points between the hitch and trailer tongue. When the trailer attempts to sway, the friction converts the movement’s energy into heat, slowing or stopping the sway. It functions similarly to a door closer, preventing sudden motion. The Equal-i-zer Hitch employs this system with a 4-point friction setup, making it highly effective at resisting lateral movement.

The second mechanism is the cam-and-lever or torsion bar system. This approach uses spring bars and cam brackets to twist and realign the trailer as sway begins. It actively pushes the trailer back into line but is found in hitches like Reese Strait-Line, not the Equal-i-zer.

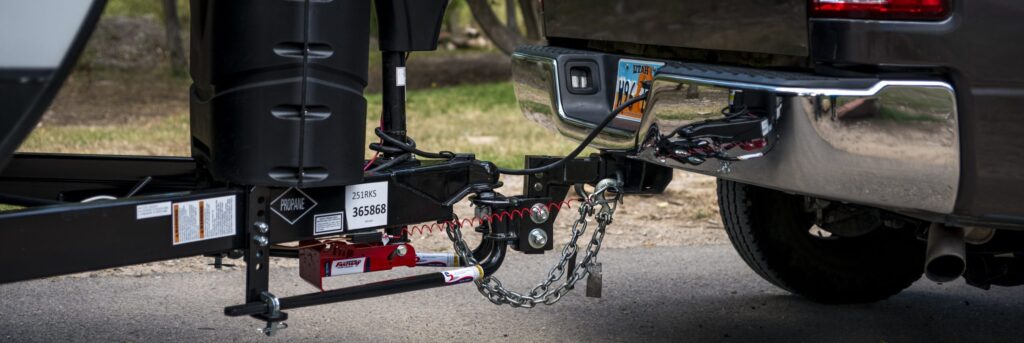

The third, more advanced option is integrated sway control with geometric pivot points. Systems like ProPride and Hensley Arrow use a round-bar linkage to move the pivot point forward, preventing sway at its source. These hitches are very effective but also more expensive than friction-based solutions.

Why the Equal-i-zer Hitch Stands Out

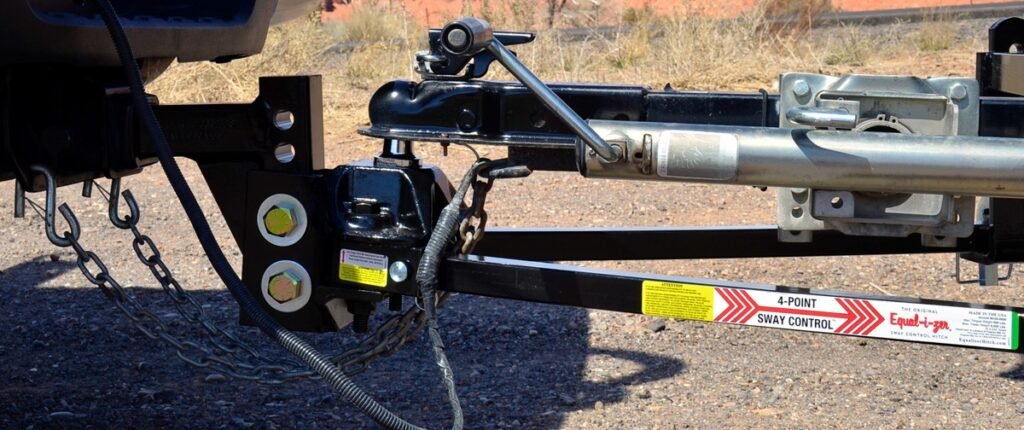

The Equal-i-zer Hitch combines weight distribution and friction-based sway control seamlessly. Its 4-point friction system provides continuous resistance across multiple points where the spring bars contact the hitch brackets. This setup converts sway energy into heat, keeping the trailer aligned without requiring a separate add-on sway bar. Unlike cam-and-lever or integrated geometric systems, the Equal-i-zer focuses on damping sway efficiently while also maintaining excellent overall trailer stability.

Advantages of Using a Sway Control Hitch

Installing a sway control hitch significantly increases safety by reducing the risk of losing control of the trailer. It also lessens driver fatigue because fewer constant steering corrections are needed. Handling improves overall, creating a more connected feeling between the tow vehicle and trailer. Additionally, sway control protects the trailer frame, hitch, and tow vehicle suspension by reducing stress caused by side-to-side motion.

Limitations and Considerations

While sway control hitches are valuable, they are not a substitute for proper trailer loading. Friction components wear over time and require inspection and occasional replacement. Some hitches need disengagement when backing up, adding a step to maneuvering. Costs vary; Standard weight-distributing hitches with sway control cost around $400 to $800, while integrated systems with more involved installation can exceed $2,000. Finally, the hitch adds weight and takes up storage space when not in use.

Explore Equal-i-zer Hitch Products

If you tow a trailer regularly, investing in a high-quality sway control hitch like the Equal-i-zer can make a significant difference in safety and handling. Sway Control hitches work to limit trailer sway when towing heavy cargo. Standard ball mounts may have minimal sway control capabilities, but for the best experience you’ll need a full trailer hitch.

Browse our full product library at Equal-i-zer Hitch to find the right hitch for your towing setup and take the next step toward a smoother, more secure towing experience.
